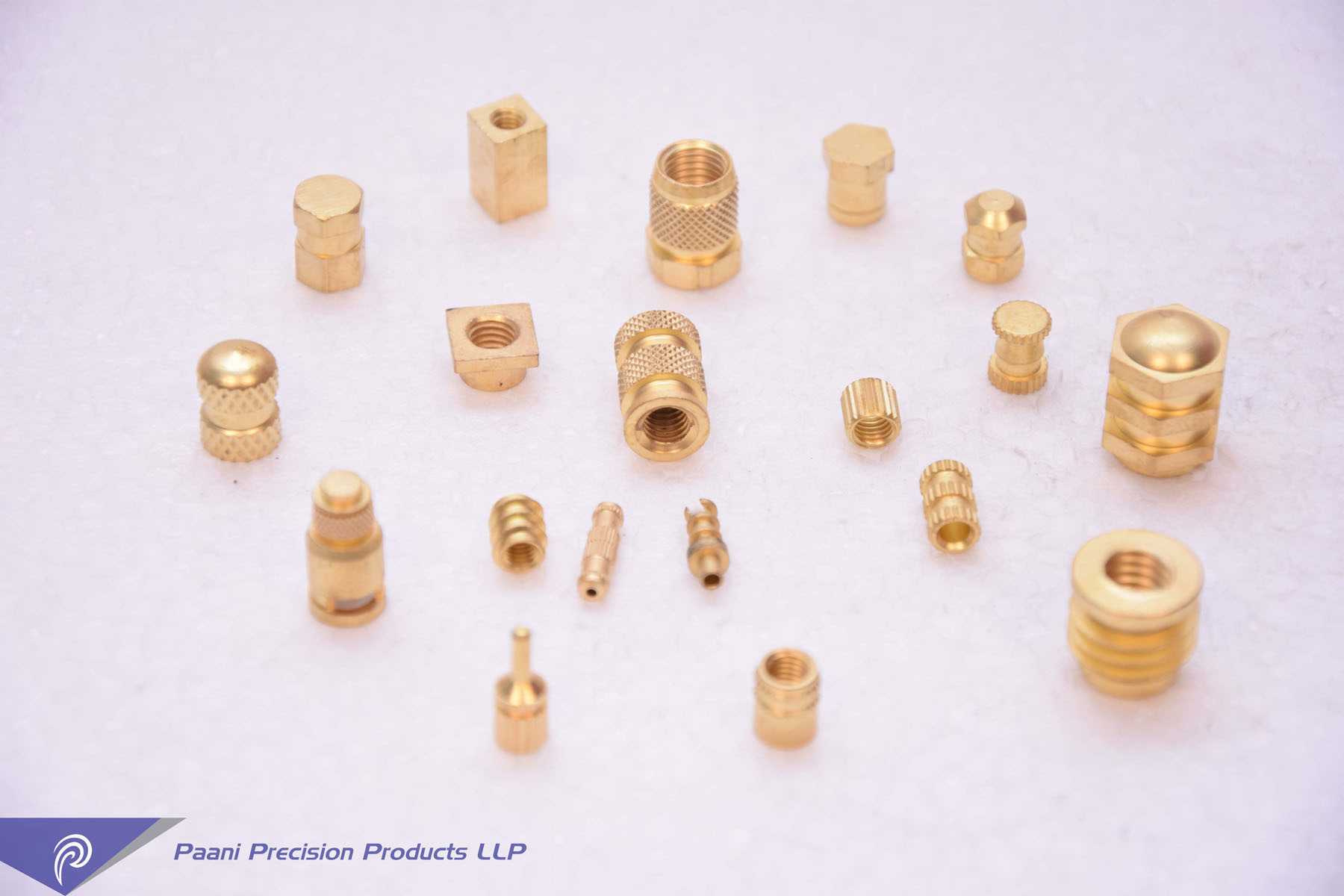

Brass Insert

We are manufacturing the round knurled inserts, hexagonal inserts and square inserts as per custom design. The inserts are available with diamond, straight or unidirectional Knurling.

Any kind of Brass Inserts can be developed and supplied exactly as per customer specifications.

We are the leading manufacturer of Brass threaded inserts for plastics Industries, Communication equipments, Automotive Industries, Electrical & Wiring Device Cases etc. We offer a full line of brass inserts for all methods of installation, including: ultrasonic, heat, thermal, press-in and mold-in. Although we produce various brass inserts as per custom design & specification, we have standard series of Threaded Inserts such as Straight Hole, Blind (Closed bottom), Collar Inserts, Ultrasonic, Press in, Tri Slotted Inserts etc.

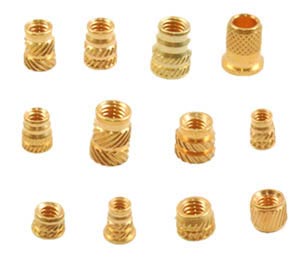

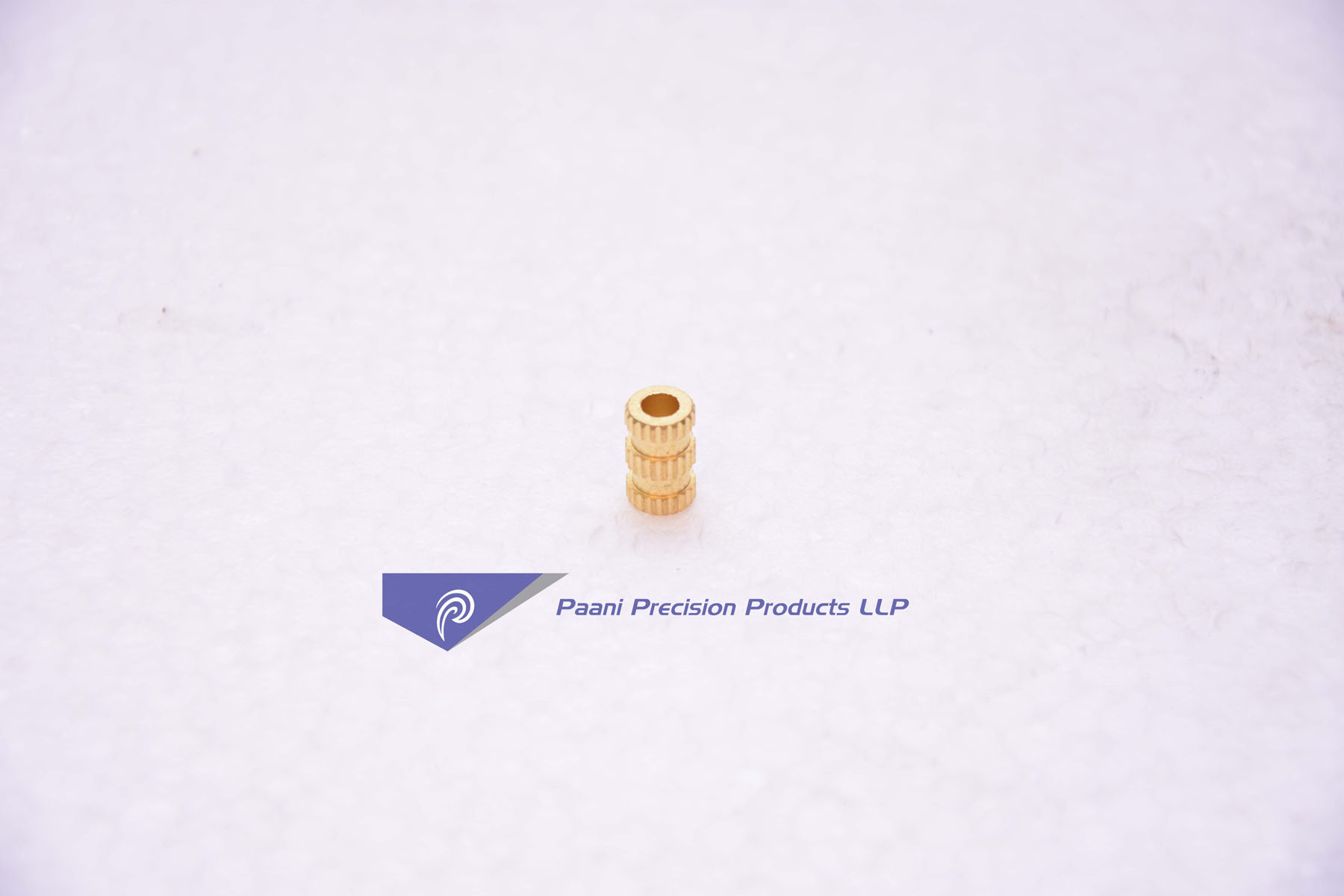

Brass Round Knurled Inserts

Threads as per International Go & Not Go Standards
Deep Groove for maximum Pull Out Resistance
Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts

Knurling Available

Diamond
Straight
Unidirectional
Both blind and through inserts are available with no minimum quantity

Typical Application

Instrumentation, Telecommunications, and other Plastic Cases Assembly.

Key Features

In such cases the length of insert is very important for proper closing of moulding die. We maintain length of such inserts within tolerance of -0.05mm.
Thread Size Starts from M1 to M50, BA, BSW, BSPT, and BSF & American Threads like UNC, UNF, UNEF, and NPT are also available as per custom requirements.
Straight, Diamond, opposite diagonal etc. are the knurling options available to give solid gripping to Molding applications.
Inserts with collar series provides Options to use Flange to make Electric Contact
Opposing Diagonal Knurls provide excellent Torque Resistance.
Vertical Undercuts in Tri Series Provides superior Tensile Strength
Blind thread or closed bottom Inserts prevents plastic from entering the bottom of the insert

Length / Size

Begins from M2 or equivalent threads and upto any size as per custom design or requirement.

Material

Brass Extruded or Brass Casted.

Material Grades

CuZn39Pb3
CW614N
CW602N
CZ132
C35330
SS-5170

Any Special Brass Material Composition As Per Customer Requirements

Threads

ISO Metric (MM), (UTS), (UNC), (UNEF), (NPT), (BSP), (BSPT), (BSW), (BSF), (BA)

Finish & Coating

Natural, Nickel Plated, Tin Plated or any coating as per customer specification.

Packaging

As per customer requirement.

Price Available

EX Factory Price, FOB, C&F, CIF.

BRASS INSERTS

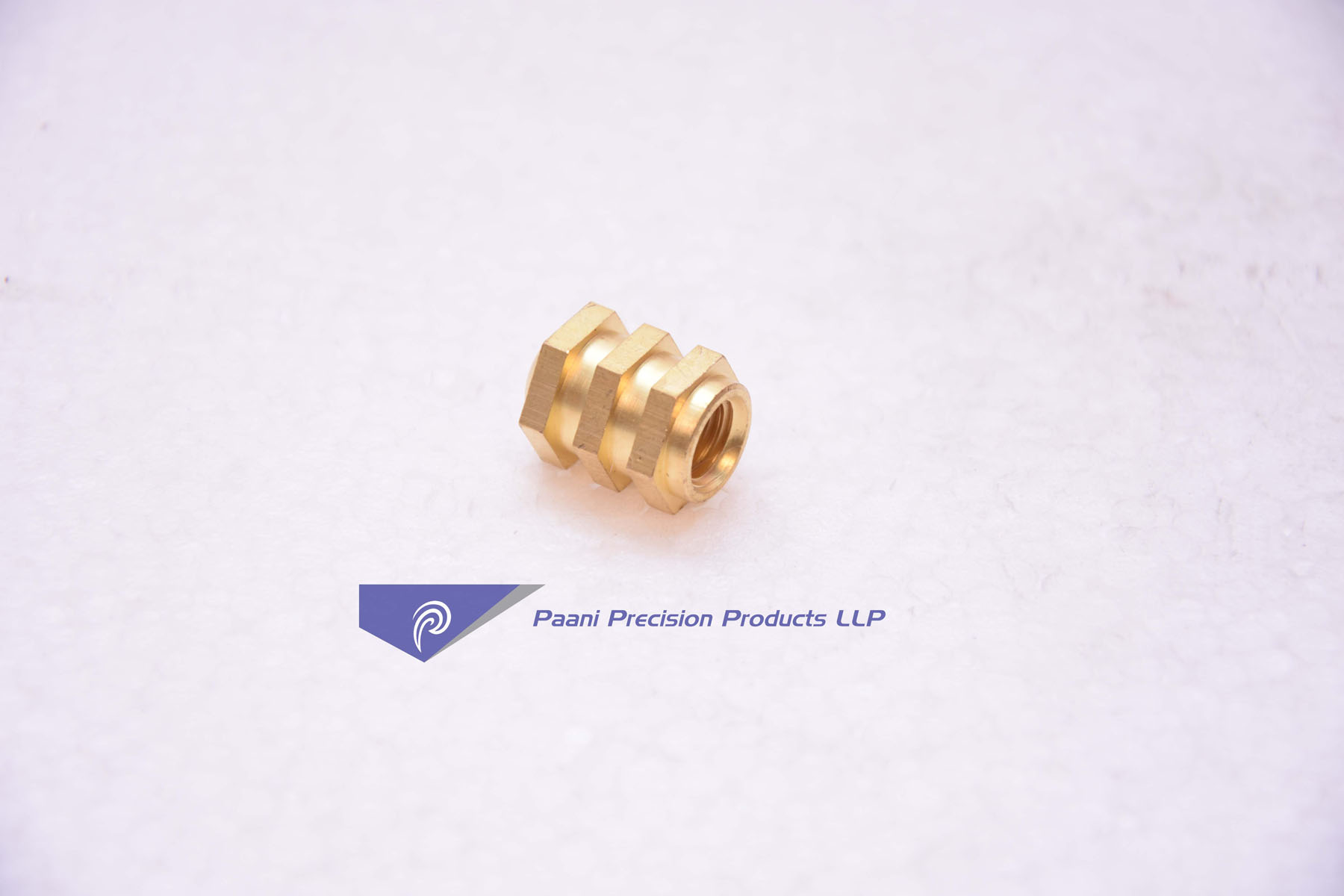

BRASS HEX INSERT

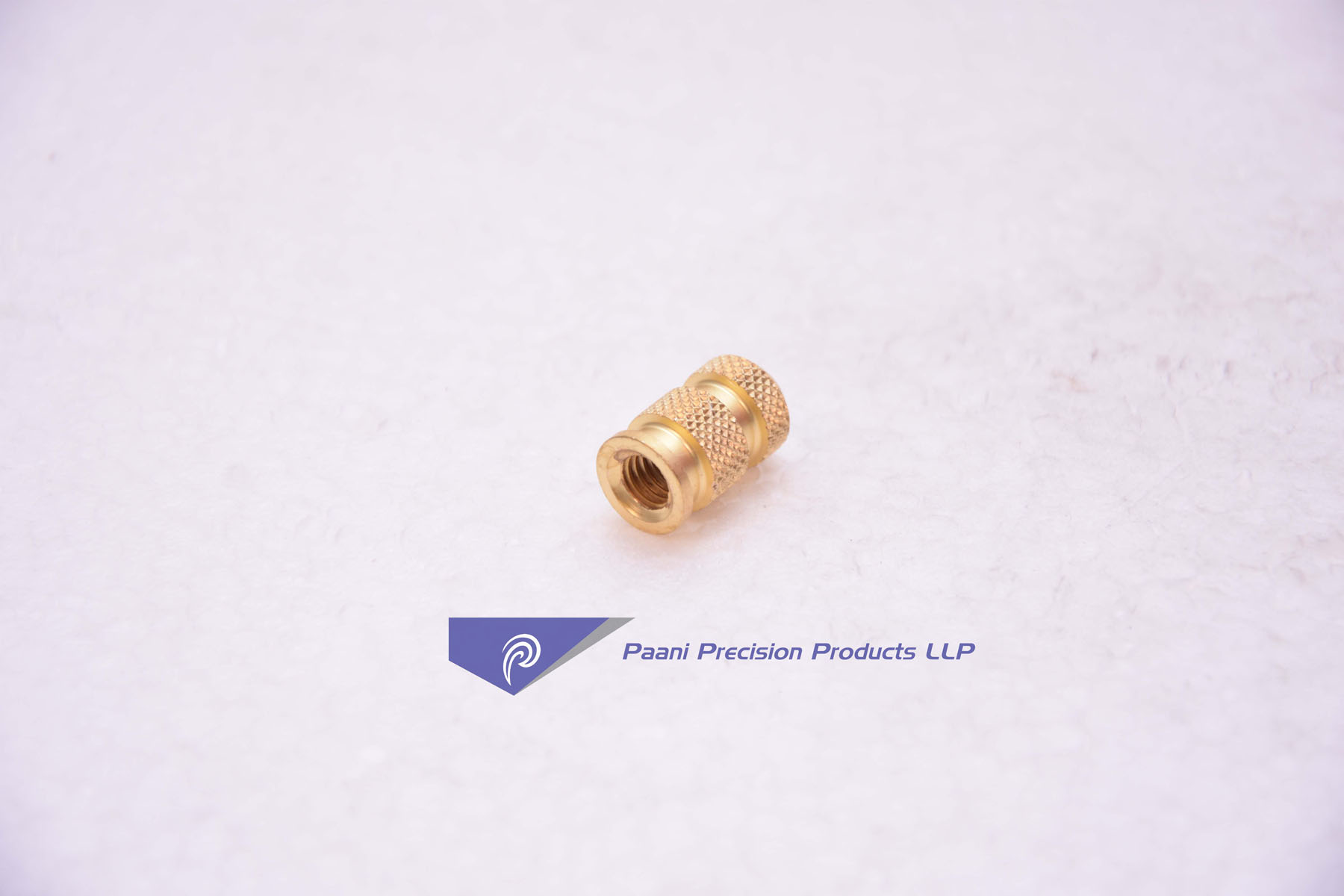

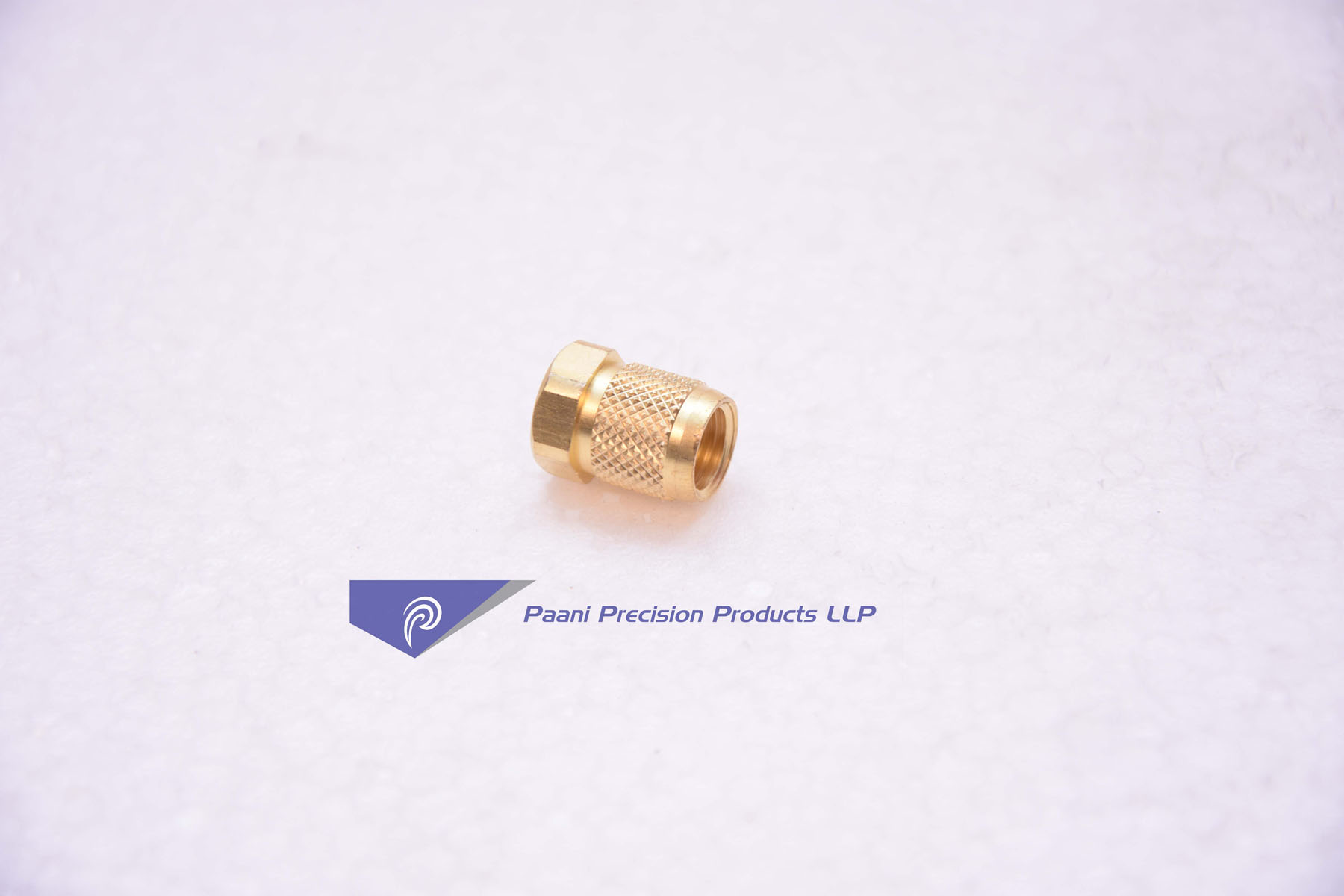

BRASS MOLDING INSERT
